Screened room

Performs tests for ESD, and transient, surge, and conducted low frequency disturbances on the power, signal and control lines.

Emission tests
Immunity tests

Specifications

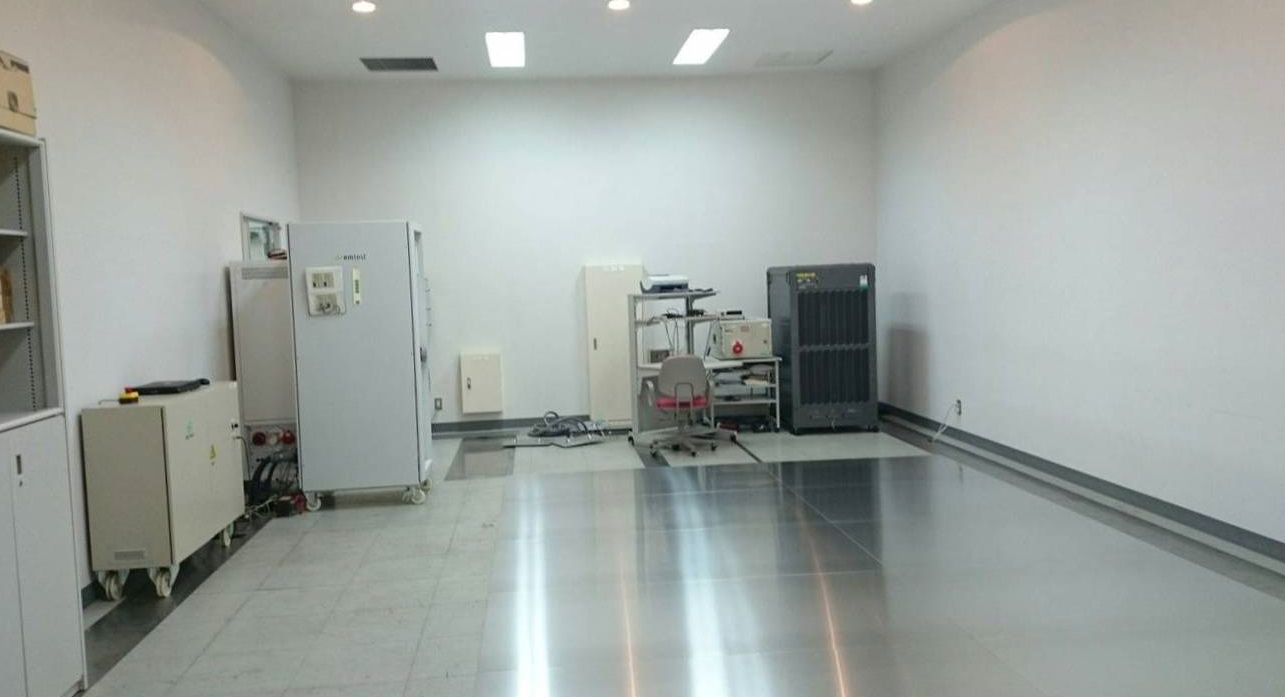

1) Screened room (Labotech EMC Center):
Internal dimensions(D×W×H) 7.0 m x 4.0 m x 2.8 m
Entrance dimensions(W×H) 1.5 m x 2.0 m (sloped entryways)
Frequency range 10 kHz - 2 GHz
Shielding (isolation) performance 10 kHz - 1.5 MHz more than 80 dB (magnetic)
30 MHz - 2 GHz more 100 dB (electric)
Power supply (CVCF) 100/115 VAC, 1 φ, 50/60 Hz, 12 kVA, 15 A max.
220/230 VAC, 1 φ, 50/60 Hz, 12 kVA, 15 A max.
220/230 VAC, 3 φ, 50/60 Hz, 12 kVA, 15 A max.
0 - 35 VDC, 30 A max
Additional services Test table(1.0 m x 1.5 m)
Ground plane (1.0 m x 1.5 m)
Sloped entryways

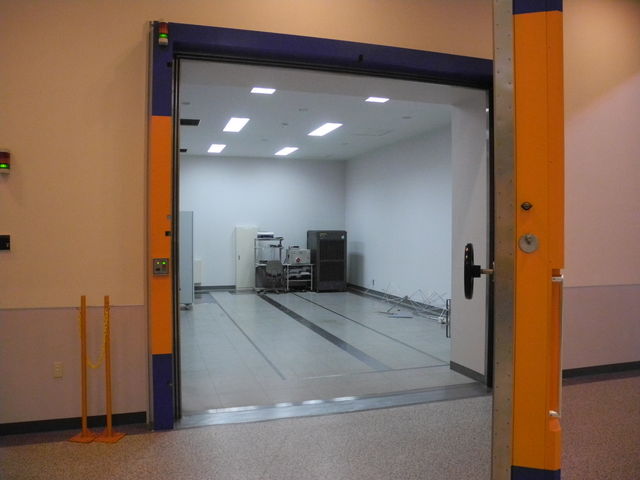

2) Screened room (Kishu Lab.):
Internal dimensions(D×W×H) 8.9 m x 5.8 m x 3.5 m
Entrance dimensions(W×H) 3.0 m x 3.0 m (flush, stepless entryways)
Power supply CVCF, 1 φ /3 φ, 40 kVA
Additional services Water supply/drainage: 1 set;
Exhaust/intake air pipe: 1 set;
Exhaust gas pipe: 1 set;
Fork truck: 500 kg, 1 m x 1 m.
