Performs cold, dry heat, damp heat, combined cold/low air pressure, combined dry heat/low air pressure tests.
Standards

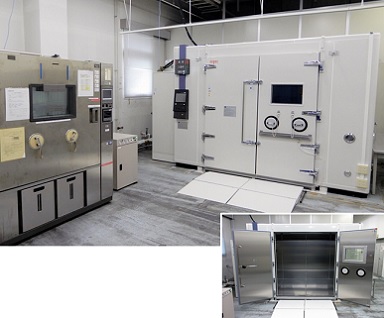

1) Extra-large Climatic Chamber (Kishu Lab.)
| Internal dimensions (D x W x H) |
2.95 m x 4.00 m x 2.20 m |
| Dimensions of door opening (W x H) |
1.70 m x 2.00 m |
| Temperature range |
-40°C - +85°C |
| Humidity range |
10% - 95%RH (+10°C - +80°C) |
| Maximum cooling rate |
within 180 min. (+20°C → -40°C) |
| Maximum heating rate |
within 80 min. (+20°C → +85°C) |
| Permissible heat generation load |
1 kW |
| Max. load capacity of floor |
600 kg |
| Power supply |
100 VAC, 1 φ, 60 Hz, 15 A |
| 200 VAC, 1 φ, 60 Hz, 20 A |
| Accessories / Additional services |
Viewing windows (440 mm x 295 mm, 350 mm x 250 mm sides) |
| Hand-in ports (φ 150 mm, under viewing window, 2 pairs) |
| Cable ports (φ 50 mm: 1 set, φ 100: 3 sets) |
| Sloped entryways(W 1.52 m, slope 195 mm/1140 mm) |
| Lift truck |
2) Large Climatic Chambers (Nishinomiya and Nishinomiya-Hama Labs.)
| Internal dimensions (D x W x H) |
1.97 m x 3.02 m x 2.10 m |
| Dimensions of door opening (W x H) |
1.69 m x 1.80 m |
| Temperature range |
-40°C - +80°C |
| Humidity range |
20% - 95%RH (+20°C - +80°C) |
| Maximum cooling rate |
within 180 min. (+20°C → -40°C) |
| Maximum heating rate |
within 60 min. (+20°C → +80°C) |
| Permissible heat generation load |
1 kW |
| Max. load capacity of floor |
500 kg |
| Power supply |
100 VAC, 1 φ, 60 Hz, 10 A |
| 200 VAC, 3 φ, 60 Hz, 10 A |
| Accessories / Additional services |
Viewing windows (440 mm x 295 mm, 350 mm x 250 mm 2 sides) |
| Hand-in ports (φ 150 mm, under viewing window, 2 pairs) |
| Cable ports (φ 100: 3 sets) |
| Sloped entryways (W 1.5 m, slope 15 mm/1100 mm) |
| Lift truck (300 kg, 1 m X 1 m / 350 kg, 0.5 m X 0.6 m) |
3) Small Climatic Chambers (Nishinomiya, Nishinomiya-Hama and Kishu Labs.)
| Internal dimensions (D x W x H) |
0.8 m X 1.0 m X 1.0 m |
| Temperature range |
-40°C - +100°C |
| Humidity range |
20% - 98%RH (+20°C - +85°C) |
| Maximum cooling rate |
within 50 min. (+20°C → -40°C) |
| Maximum heating rate |
within 45 min. (-40°C → 100°C) |
| Permissible heat generation load |
0.7 kW |
| Max. load capacity of floor |
100 kg(floor base) 30 kg(rack) |
| Power supply |
100 VAC, 1 φ, 60 Hz, 10 A |
| 200 VAC, 3 φ, 60 Hz, 10 A |
| Accessories / Additional services |
Viewing window(1 set) |
| Hand-in ports(φ 130 mm, under viewing window, 1 pair) |
| Cable ports (φ 100 mm: 2 sets) |
| Shelf board/support (2 sets) |
| Lift truck (300 kg, 1 m X 1 m / 350 kg, 0.5 m X 0.6 m) |
4) Low Air Pressure/High Altitude Chamber (Nishinomiya-Hama Lab.)
| Internal dimensions (D x W x H) |
1.5 m x 1.0 m x 1.0 m |
| Pressure range |
101.3 kPa - 1.3 kPa (equivalent altitude: 29,000 m/95,000 feet) |
| Maximum depressurizing rate |
within 15 min. (101.3 kPa → 1.1 kPa) |
| Maximum pressurizing rate |
within 5 min. (up to 101.3 kPa) |
| Temperature range |
-70°C - +180°C |
| Maximum cooling rate |
within 120min. (+20°C → -70°C) |
| Maximum heating rate |
Within 60 min. (+20°C → +180°C) |
| Permissible heat generation load |
500 W (at -70°C) |
| Maximum load |
150 kg (floor base), 35 kg (rack) |
| Power supply |
100 VAC, 1 φ, 60 Hz, 10 A |
| 200 VAC, 3 φ 60 Hz, 10 A |
| Additional services |
Viewing windows (φ 150 mm x 2 with wipers) |
| Cable ports (with flange, 2 sets) |
| Shelf board/support (2 sets) |
| Lift truck(300 kg, 1 m x 1 m) |
5) Large Climatic Chamber (with tied-up lab.)
| Internal dimensions (D x W x H) |
2.0 m x 1.2 m x 1.8 m |
| Temperature range |
-40°C - +95°C |
| Humidity range |
60% - 95%RH |
6) Air to Air Thermal Shock Chamber (with tied-up lab.)
| Internal dimensions (D x W x H) |
0.67 m x 0.97 m x 0.46 m |
| High temperature range |
+60°C - +200°C |
| Low temperature range |
-65°C - 0°C |
| Max. load capacity of floor |
50 kg |
Applied test standards:
| Cold |
IEC 60068-2-1 |
JIS C 0020 (C 60068-2-1) |
| Dry heat |
IEC 60068-2-2 |
JIS C 0021 (C 60068-2-2) |
| Damp heat |
IEC 60068-2-3 |
JIS C 0022 (C 60068-2-3) |
| Low air pressure |
IEC 60068-2-13 |
JIS C 0029 (C 60068-2-13) |
| Damp heat, cyclic |
IEC 60068-2-30 |
JIS C 0027 (C 60068-2-30) |
| Combined cold/low air pressure |
IEC 60068-2-40 |
JIS C 0030 (C 60068-2-40) |
| Combined dry heat/low air pressure |
IEC 60068-2-41 |
JIS C 0031 (C 60068-2-41) |
