- Available for EMC (Emission/Immunity) testing for Consumer, Industrial, Medical, Railway electronics equipment/devices, and for Climatic (Vibration/Shock, Temperature/Humidity, and Combined Environmental) testing.

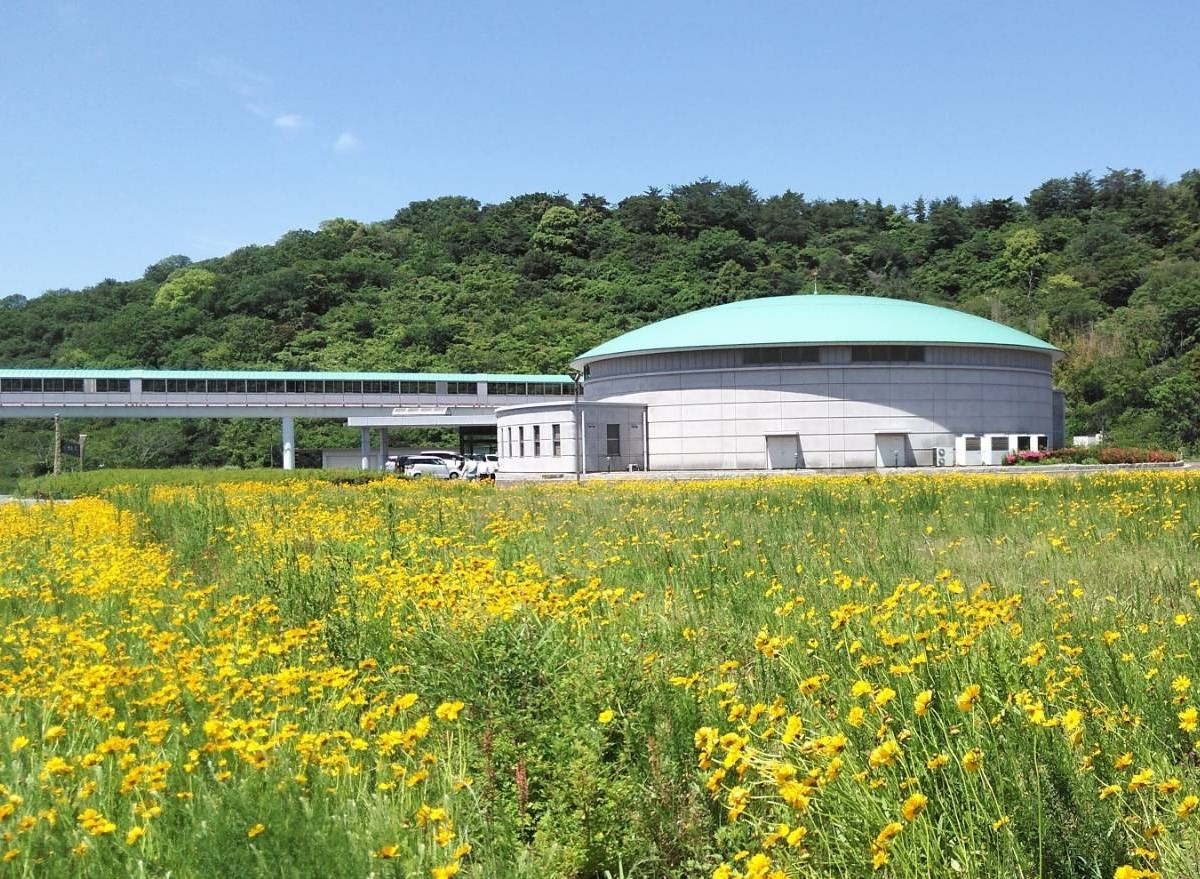

- Located within easy access of Nankai Line – Wakayamadaigakumae Stn. (3 min. by car), National Route 26 – Hirai Ramp (5 min. by car).
- Large-sized products testing is available through large parking space and large entrance/entryways.
- Open field site of 20,000 m2 is also available for radio transmitter/transceiver testing.

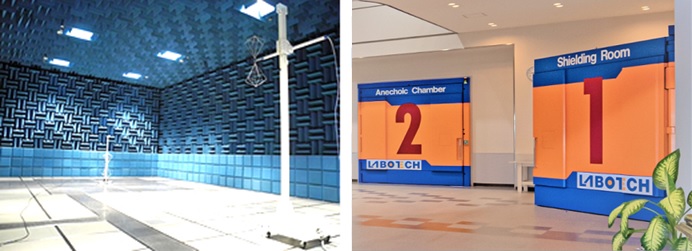

| Internal dimensions(D×W×H) | 21.5 m x 13.5 m x 8.0 m |
|---|---|
| Entrance dimensions(W×H) | 3.0 m x 3.0 m (flush, stepless entryways) |
| Measuring room dimensions(D×W×H) | 8.9 m x 3.8 m x 3.5 m |
| Turntable | Dia. 5.5 m / 2.0 m dual type |
| Max. load 3 t / 0.5 t | |
| Frequency range | 10 kHz - 6 GHz |
| Site attenuation (NSA) | within ±4.0 dB |
| Power supply | CVCF, 1 φ/3 φ, 40 kVA |
| Acoustics characteristics | Semi-anechoic room complied with JIS Z 8732 / ISO 3745 requirements |
| Additional services | Water supply/drainage: 2 sets; Exhaust/intake air pipe: 2 sets;: Exhaust gas pipe: 2 sets; Spectrum analyzer screen projector; Monitoring camera: 2 sets (fixed: 1, movable: 1); Fork truck: 500 kg, 1 m x 1 m. |

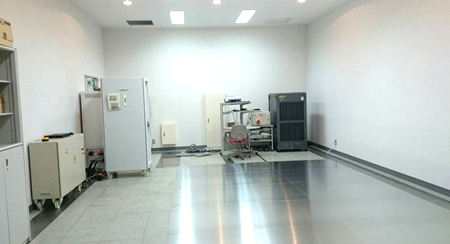

| Internal dimensions(D×W×H) | 8.9 m x 5.8 m x 3.5 m |
|---|---|
| Entrance dimensions(W×H) | 3.0 m x 3.0 m (flush, stepless entryways) |
| Power supply | CVCF, 1 φ /3 φ, 40 kVA |
| Additional services | Water supply/drainage: 1 set; Exhaust/intake air pipe: 1 set; Exhaust gas pipe: 1 set; Fork truck: 500 kg, 1 m x 1 m. |

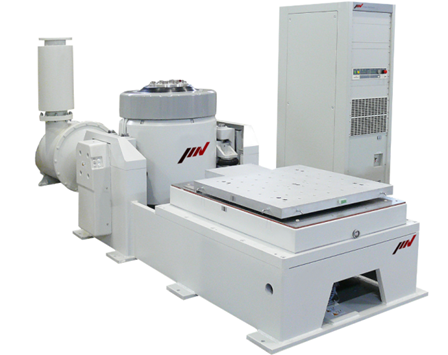

| Vibration table dimensions | 500 mm x 500 mm or 1,000 mm x 1,000 mm |
|---|---|
| Max. payload | 400 kg |
| Max. force | 30.0 kN |
| Max. acceleration | 900 m/s2 |
| Max. velocity | 2.0 m/s |
| Max. displacement | 76 mm p-p |
| Frequency range (horizontal) | 2 Hz – 1,200 Hz (with Test table 1,000 mm x 1,000 mm used) |
| Frequency range (vertical) | 2 Hz – 100 Hz (with Test table 1,000 mm x 1,000 mm used) |
| 2 Hz – 500 Hz (with Test table 500 mm x 500 mm used) | |
| 2 Hz – 2,600 Hz(with no load*) | |
| Accessories / Additional services | Acceleration pick-up sensors; |
| Fork truck (500 kg, 1 m x 1 m) | |
| Chain hoist (1000 kg) |

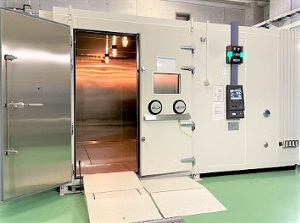

| Internal dimensions (D x W x H) | 2.95 m x 4.00 m x 2.20 m |
|---|---|
| Dimensions of door opening (W x H) | 1.70 m x 2.00 m |
| Temperature range | -40°C - +85°C |
| Humidity range | 10% - 95%RH (+10°C - +80°C) |
| Maximum cooling rate | within 180 min. (+20°C → -40°C) |
| Maximum heating rate | within 60 min. (+20°C → +80°C) |
| Permissible heat generation load | 1 kW |
| Max. load capacity of floor | 600 kg |
| Power supply | 100 VAC, 1 φ 60 Hz, 15 A |
| 200 VAC, 1 φ, 60 Hz, 20 A | |
| Accessories / Additional services | Viewing windows (440 mm x 295 mm, 350 mm x 250 mm sides) |
| Hand-in ports (φ150 mm, under viewing window, 2 pairs) | |
| Cable ports (φ50 mm: 1 set, φ100: 3 sets) | |
| Sloped entryways(W 1.52 m, slope 195 mm/1140 mm) | |
| Lift truck |

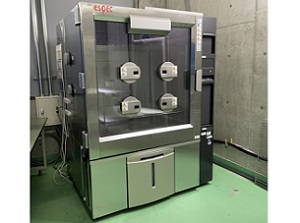

| Internal dimensions (D x W x H) | 0.8 m X 1.0 m X 1.0 m |
|---|---|
| Temperature range | -40°C - +100°C |
| Humidity range | 20% - 98%RH (+20°C - +85°C) |
| Maximum cooling rate | within 50 min. (+20°C → -40°C) |
| Maximum heating rate | within 45 min. (-40°C → 100°C) |
| Permissible heat generation load | 0.7 kW |
| Max. load capacity of floor | 100 kg(floor base), 30 kg(rack) |
| Power supply | 100 VAC, 1 φ, 60 Hz, 10 A |
| 200 VAC, 3 φ, 60 Hz, 10 A | |
| Accessories / Additional services | Viewing window(1 set) |
| Hand-in ports(φ 130 mm, under viewing window, 1 pair) | |
| Cable ports (φ 100 mm: 2 sets) | |
| Shelf board/support (2 sets) | |
| Lift truck |
| Vibration table dimensions | 800 mm x 800 mm |
|---|---|
| Max. payload | 400 kg |
| Max. force | 20 kN |
| Max. acceleration | 900 m/s2 |
| Max. velocity | 2.2 m/s |
| Max. displacement | 51 mm p-p |
| Frequency range (vertical only) | 5 Hz – 350 Hz (with table used) |
| 2 Hz – 2,500 Hz (with no load*) | |
| Accessories / Additional services | Acceleration pick-up sensors; Chain hoist (1,000 kg) |
| Chamber internal dimensions | 1,000 x 1,000 x 1,000 mm |
|---|---|
| Temperature range | -40°C - +180°C |
| Humidity range | 20% - 98%RH |

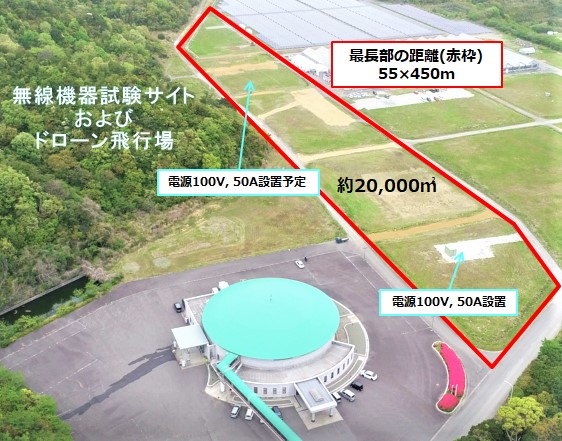

7) Open Field Site:
Open field site of 20,000 m2 is also available for radio transmitter/transceiver testing.
Radio-communications, and radio propagation characteristics testing including spurious emissions are available on the far-field bases.
Test specifications:
| Tests | Standards | Specifications | |
|---|---|---|---|
| Radiated emissions | CISPR 11/22, FCC 15B, VCCI | Frequency range | 9 kHz to 40 GHz |
| Conducted emissions - Power lines (AMN) | >CISPR 11/22, FCC 15B, VCCI | Frequency range | 9 kHz to 30 MHz |
| Rating | 250 VDC, 32 A | ||
| 250 VAC, 32 A, 1 φ | |||
| 250 VAC, 32 A, 3 φ | |||
| Conducted emissions - Signal lines (ISN, Current Probe) | CISPR 22, VCCI | Frequency range | 150 kHz to 30 MHz |
| Rating | 100 VDC, 0.2 A | ||
| Disturbance power | CISPR 14-1 | Frequency range | 30 MHz to 300 MHz |
| Harmonic current emissions | IEC 61000-3-2 | Rating | 230 VAC, 16 A, 1 φ |
| 230 VAC, 16 A, 3 φ | |||
| Voltage fluctuations and flicker | IEC 61000-3-3 | Rating | 230 VAC, 16 A, 1 φ |
| 230 VAC, 16 A, 3 φ | |||
| Human exposure to EM fields | EN 62311 | Frequency range | 1 Hz to 50 GHz |
| Tests | Standards | Specifications | |
|---|---|---|---|
| Electrostatic discharge (ESD) | IEC61000-4-2 | Contact | 30 kV max. |
| Air | 30 kV max. | ||
| Radiated frequencies | IEC61000-4-3 | Frequency range | 26 MHz - 6 GHz |
| Field strength | 10 V/m max. | ||
| Modulation | 400 Hz/1 kHz, 80%AM | ||
| Electrical fast transients / Bursts | IEC61000-4-4 | Voltage peak | 4.8 kV max. |
| Rise time / Duration | 5 ns/50 ns | ||
| Power ports (CDN) | 125 VDC, 32 A | ||
| 280 VAC, 32 A, 1 φ | |||
| 280 VAC, 32 A, 3 φ | |||
| Signal and control ports (Capacitive coupling clamp) | Cable dia.: 32 mm max. | ||
| Surges | IEC61000-4-5 | Voltage peak | 6.6 kV max. |
| Rise time / Duration | 1.2 μs/50 μs | ||
| Power ports (CDN) | 125 VDC, 32 A | ||
| 280 VAC, 32 A, 1 φ | |||
| 280 VAC, 32 A, 3 φ | |||
| Interconnection lines | Shielded lines, Unshielded unsymmetrical lines (except Unshielded symmetrical lines) 250 VAC, 250 VDC/1.5 A |
||
| High-speed communication lines (LAN) | 2 kV max. Coupling to 1, 2 or 4 pairs ISDN, 10/100/1000 Base-T |
||
| Telecommunication Surges | IEC61000-4-5 | Voltage peak | 7.7 kV max. |
| Rise time / Duration | 10 μs/700 μs | ||
| Outdoor unshielded symmetrical communication lines | 250 VAC, 250 VDC/0.5 A | ||
| Conducted radio-frequencies | IEC61000-4-6 | Frequency range | 10 kHz - 230 MHz |
| Voltage level | 10 Vrms max. | ||
| Modulation | 400 Hz/1 kHz, 80%AM | ||
| Power ports(CDN) | 240 VAC, 16 A, 1 φ | ||
| 240 VAC, 16 A, 3 φ | |||
| Signal / control ports(EM clamp) | Cable dia. 32 mm max. | ||
| Power frequency magnetic field | IEC61000-4-8 | Magnetic field level | 30 A/m |
| Power frequency | 50 Hz/60 Hz | ||
| Inductive coil | 2 m x 2 m | ||
| Voltage dips, short interruptions and voltage variations | IEC61000-4-11 | Power supply lines | 230 VAC, 16 A, 1 φ |
| Harmonics | IEC61000-4-13 | Sweep frequencies | 13 Hz - 2.8 kHz |
| Individual harmonics | 2nd – 40th order | ||
| Test level (harmonic voltage) | 0.1% - 30% of power supply voltage | ||
| Power supply lines | 240 VAC, 16 A, 1 φ | ||
| Conducted low-frequency | IEC60945 ed.3 | Frequency range | 50 Hz - 12 kHz |
| Test level | 1% - 10% of Power supply voltage | ||
| Power supply lines (Isolation transformer) | 35 VDC, 30 A | ||
| 250 VAC, 16 A, 1 φ | |||
| Sinusoidal vibration test | IEC 60068-2-6 | JIS C 60068-2-6 |
|---|---|---|
| Shock /Bump test | IEC 60068-2-27 | JIS C 60068-2-27 |
| Broadband random vibration test | IEC 60068-2-64 | JIS C 60068-2-64 |
| Transport packages vibration test | ISO 13355 | JIS Z 0232 |
| Cold | IEC 60068-2-1 | JIS C 0020 (C 60068-2-1) |
|---|---|---|
| Dry heat | IEC 60068-2-2 | JIS C 0021 (C 60068-2-2) |
| Damp heat | IEC 60068-2-3 | JIS C 0022 (C 60068-2-3) |
| Low air pressure | IEC 60068-2-13 | JIS C 0029 (C 60068-2-13) |
| Damp heat, cyclic | IEC 60068-2-30 | JIS C 0027 (C 60068-2-30) |
| Combined cold/low air pressure | IEC 60068-2-40 | JIS C 0030 (C 60068-2-40) |
| Combined dry heat/low air pressure | IEC 60068-2-41 | JIS C 0031 (C 60068-2-41) |
