Test Laboratories Nishinomiya Lab

  • Available for Climatic (Temperature/Humidity) testing.

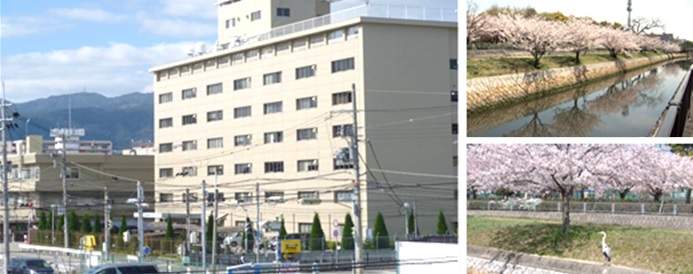

  • Located within easy access of JR Kobe Line – Nishinomiya and Hankyu Kobe Line – Nishinomiya-Kitaguchi Stn. (10 min. walk), and Meishin Expressway – Nishinomiya IC / Hanshin Expressway – No. 3 Kobe Route – Nishinomiya IC (10 min. by car).

Test Laboratories Nishinomiya Lab

Test facilities:
1) Large Climatic Chamber:
Internal dimensions (D x W x H) 1.97 m x 3.02 m x 2.10 m
Dimensions of door opening (W x H) 1.69 m x 1.80 m
Temperature range -40°C - +80°C
Humidity range 20% - 95%RH (+20°C - +80°C)
Maximum cooling rate within 180 min. (+20°C → -40°C)
Maximum heating rate within 60 min. (+20°C → +80°C)
Permissible heat generation load 1 kW
Max. load capacity of floor 500 kg
Power supply 100 VAC, 1 φ, 60 Hz, 10 A
200 VAC, 3 φ, 60 Hz, 10 A
Accessories / Additional services Viewing windows (440 mm x 295 mm, 350 mm x 250 mm sides)
Hand-in ports (φ 150 mm, under viewing window, 2 pairs)
Cable ports (φ 100: 3 sets)
Sloped entryways (W 1.5 m, slope 15 mm/1100 mm)
Lift truck (300 kg, 1 m X 1 m / 350 kg, 0.5 m X 0.6 m)
2) Small Climatic Chamber:
Internal dimensions (D x W x H) 0.8 m X 1.0 m X 1.0 m
Temperature range -40°C - +100°C
Humidity range 20% - 98%RH (+20°C - +85°C)
Maximum cooling rate within 50 min. (+20°C → -40°C)
Maximum heating rate within 45 min. (-40°C → 100°C)
Permissible heat generation load 0.7 kW
Max. load capacity of floor 100 kg(floor base), 30 kg(rack)

Power supply

100 VAC, 1 φ, 60 Hz, 10 A
200 VAC, 3 φ, 60 Hz, 10 A
Accessories / Additional services Viewing window(1 set)
Hand-in ports(φ130 mm, under viewing window, 1 pair)
Cable ports (φ100 mm: 2 sets)
Shelf board/support (2 sets)
Lift truck (300 kg, 1 m X 1 m / 350 kg, 0.5 m X 0.6 m)
Test Laboratories Nishinomiya Lab


Test specifications:
Temperature/Humidity Tests:
Cold IEC 60068-2-1 JIS C 0020 (C 60068-2-1)
Dry heat IEC 60068-2-2 JIS C 0021 (C 60068-2-2)
Damp heat IEC 60068-2-3 JIS C 0022 (C 60068-2-3)
Damp heat, cyclic IEC 60068-2-30 JIS C 0027 (C 60068-2-30)
