Test Laboratories Nishinomiya-Hama Lab

  • Available for Climatic (Vibration/Shock, Temperature/Humidity), Low Air Pressure, Waterproof and Package drop testing and for EMC (Emission) testing..

  • Located within easy access of Hanshin Expressway – No. 5 Wangan Route – Nishinomiya-Hama IC (1 min. by car) .

  • 10 (ten) min. walk will take you to Shin-Nishinomiya Yacht Harbor, one of the largest ones in West Japan.

Test Laboratories Nishinomiya-Hama Lab

Test facilities:

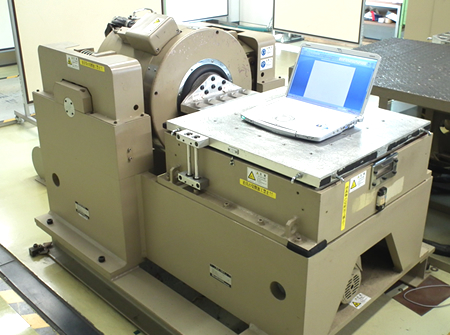

1) 3.5-ton type Vibration Test System:
Vibration table dimensions 500 mm x 500 mm or 1,000 mm x 1,000 mm
Max. payload 500 kg
Max. force 34.3 kN
Max. acceleration 980 m/s2 (100 G)
Max. velocity 1.5 m/s
Max. displacement 51 mm p-p
Frequency range (horizontal) 2 Hz - 400 Hz (with Test table 1,000 mm x 1,000 mm used)
Frequency range (vertical) 2 Hz - 150 Hz (with Test table 1,000 mm x 1,000 mm used)
2 Hz - 400 Hz (with Test table 500 mm x 500 mm used)
2 Hz - 2,000 Hz(with no load*)
Max. duration time 50 ms
Accessories / Additional services Acceleration pick-up sensors
Forklift(300 kg, 1 m x 1 m)
Chain hoist (500 kg)

* - Test fixture will be directly fixed on the shaker base without Test table.

Test Laboratories Nishinomiya-Hama Lab

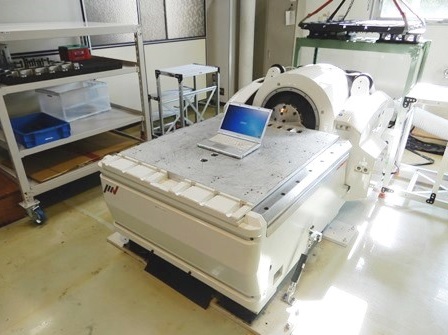

2) 2.0-ton type Vibration Test System:
Vibration table dimensions 1,000 mm x 1,000 mm
Max. payload 400 kg
Max. force 19.6 kN
Max. acceleration 980 m/s2 (100 G)
Max. velocity 1.85 m/s
Max. displacement 51 mm p-p
Frequency range (horizontal) 5 Hz – 250 Hz (with Test table used)
Frequency range (vertical) 5 Hz – 100 Hz (with Test table used)
2 Hz – 3,000 Hz (with no load*)
Max. duration time 50 ms
Accessories / Additional services Acceleration pick-up sensors;
Forklift (300 kg, 1 m x 1 m);
Chain hoist(500 kg)
Test Laboratories Nishinomiya-Hama Lab

3) 0.6-ton type Vibration Test System:
Vibration table dimensions 630 mm x 630 mm
Max. payload 200 kg
Max. force 5.88 kN
Max. acceleration 980 m/s2 (100 G)
Max. velocity 1.4 m/s
Max. displacement 25 mm p-p
Frequency range (horizontal) 5 Hz – 2,000 Hz (with table used)
Frequency range (vertical) 5 Hz – 360 Hz (with table used)
2 Hz – 3,000 Hz (with no load*)
Max. duration time 30 ms
Accessories / Additional services Acceleration pick-up sensors
Test Laboratories Nishinomiya-Hama Lab

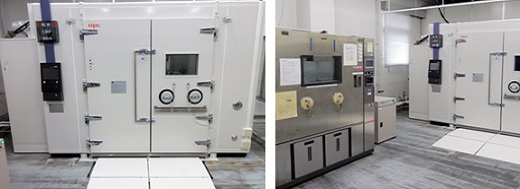

4) Large Climatic Chamber:
Internal dimensions (D x W x H) 1.97 m x 3.02 m x 2.10 m
Dimensions of door opening (W x H) 1.69 m x 1.80 m
Temperature range -40°C - +80°C
Humidity range 20% - 95%RH (+20°C - +80°C)
Maximum cooling rate within 180 min. (+20°C → -40°C)
Maximum heating rate within 60 min. (+20°C → +80°C)
Permissible heat generation load 1 kW
Max. load capacity of floor 500 kg
Power supply 100 VAC, 1 φ, 60 Hz, 10 A
200 VAC, 3 φ 60 Hz, 10 A
Accessories / Additional services Viewing windows (440 mm x 295 mm, 350 mm x 250 mm 2 sides)
Hand-in ports (φ150 mm, under viewing window, 2 pairs)
Cable ports (φ100: 3 sets)
Sloped entryways (W 1.5 m, slope 15 mm/1100 mm)
Lift truck (300 kg, 1 m X 1 m / 350 kg, 0.5 m X 0.6 m)
Test Laboratories Nishinomiya-Hama Lab

5) Small Climatic Chamber:
Internal dimensions (D x W x H) 0.8 m X 1.0 m X 1.0 m
Temperature range -40°C - +100°C
Humidity range 20% - 98%RH (+20°C - +85°C)
Maximum cooling rate within 50 min. (+20°C → -40°C)
Maximum heating rate within 45 min. (-40°C → 100°C)
Permissible heat generation load 0.7 kW
Max. load capacity of floor 100 kg(floor base), 330 kg(rack)
Power supply 100 VAC, 1 φ, 60 Hz, 10 A
200 VAC, 3 φ, 60 Hz, 10 A
Accessories / Additional services Viewing window(1 set)
Hand-in ports(φ130 mm, under viewing window, 1 pair)
Cable ports (φ100 mm: 2 sets)
Shelf board/support (2 sets)
Lift truck (300 kg, 1 m X 1 m / 350 kg, 0.5 m X 0.6 m)
Test Laboratories Nishinomiya-Hama Lab

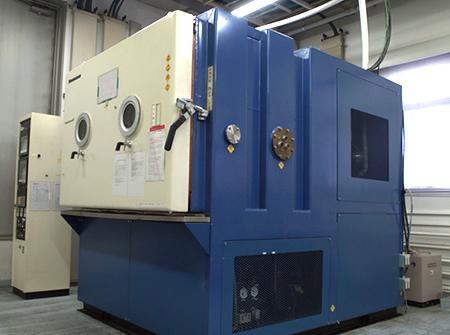

6) Low Air Pressure/High Altitude Test Chamber:
Internal dimensions (D x W x H) 1.5 m x 1.0 m x 1.0 m
Pressure range 101.3 kPa - 1.3 kPa (equivalent altitude: 29,000 m/95,000 feet)
Maximum depressurizing rate within 15 min. (101.3 kPa → 1.1 kPa)
Maximum pressurizing rate within 5 min. (up to 101.3 kPa)
Temperature range -70°C - +180°C
Maximum cooling rate within 120min. (+20°C → -70°C)
Maximum heating rate Within 60 min. (+20°C → +180°C)
Permissible heat generation load 500 W (at -70°C)
Maximum load 150 kg (floor base), 35 kg (rack)
Power supply 100 VAC, 1 φ, 60 Hz, 10 A
200 VAC, 3 φ, 60 Hz, 10 A
Additional services Viewing windows (φ150 mm x 2 with wipers)
Cable ports (with flange, 2 sets)
Shelf board/support (2 sets)
Lift truck(300 kg, 1 m x 1 m)
Test Laboratories Nishinomiya-Hama Lab

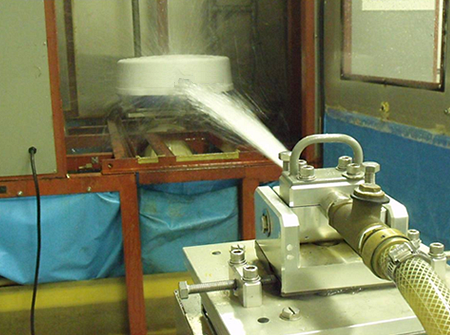

7) Waterproof Test Chambers:
Water drop/flow rate IPX2 3 mm/min water drops
IPX5 12.5 l/min  6.3-mm-dia. nozzle
IPX6 100 l/min  12.5-mm-dia. nozzle
Max. EUT dimensions (for IPX2) 0.8 m x 0.8 m x 0.5 m
Turntable
(for IPX5/IPX6)
Size 0.4 m x 0.4 m
Maximum load 10 kg
Test Laboratories Nishinomiya-Hama Lab

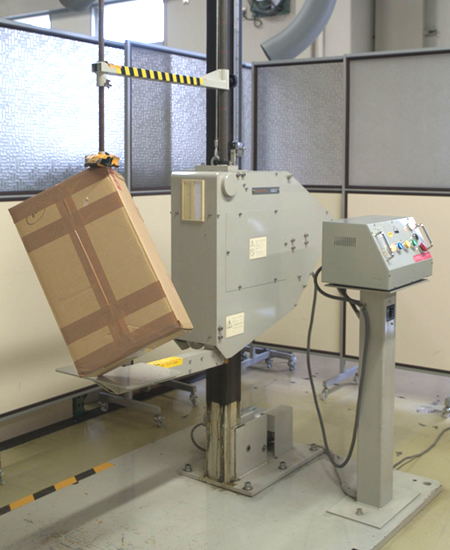

8) Package Drop Test System:
Maximum size of package 1.0 m x 0.8 m x 1.0 m
Maximum load 100 kg
Drop height 0.3 m to 1.5 m
Test Laboratories Nishinomiya-Hama Lab

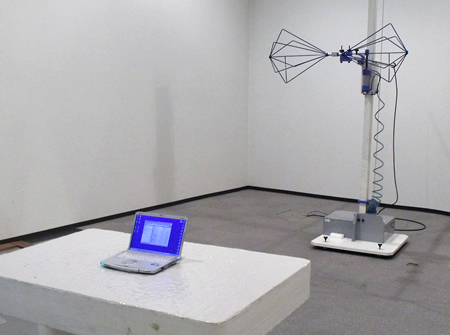

9) 3 m Anechoic Chamber:
Internal dimensions (D×W×H) 8.5 m × 6.0 m × 5.8 m
Entrance dimensions(W×H) 1.6 m × 2.0 m (sloped entryways)
Measuring room dimensions(D×W×H) 4.6 m × 2.6 m × 3.0 m
Measuring room door dimensions(W×H) 1.6 m × 2.0 m
Turntable Dia. 1.2 m
Max. load 300 kg
Measuring antenna height 1 m - 4 m
Frequency range 150 kHz - 2 GHz
Site attenuation (NSA) within ±4 dB
Power supply (CVCF) 100/115 VAC, 1 φ 50/60 Hz, 2 kVA, 20 A max.
220/230 VAC, 1 φ, 50/60 Hz, 4 kVA, 20 A max.
220/230 VAC, 3 φ, 50/60 Hz, 6 kVA, 15 A max.
0 - 35 VDC, 30 A max.
Additional services Test table (Styrofoam, 1.5 m x 1 m,  H=0.8 m)
Vertical ground plane for conducted emission measurements (3 m x 2 m)
Monitoring camera: 1 (fixed)
Fork truck(300 kg, 1 m × 1 m)
Test Laboratories Nishinomiya-Hama Lab


Test specifications:
1) Vibration/Shock Tests:
Sinusoidal vibration test IEC 60068-2-6 JIS C 60068-2-6
Shock /Bump test IEC 60068-2-27 JIS C 60068-2-27
Broadband random vibration test IEC 60068-2-64 JIS C 60068-2-64
Transport packages vibration test ISO 13355 JIS Z 0232
2) Temperature/Humidity and Low Air Pressure Tests:
Cold IEC 60068-2-1 JIS C 0020 (C 60068-2-1)
Dry heat IEC 60068-2-2 JIS C 0021 (C 60068-2-2)
Damp heat IEC 60068-2-3 JIS C 0022 (C 60068-2-3)
Low air pressure IEC 60068-2-13 JIS C 0029 (C 60068-2-13)
Damp heat, cyclic IEC 60068-2-30 JIS C 0027 (C 60068-2-30)
Combined cold/low air pressure IEC 60068-2-40 JIS C 0030 (C 60068-2-40)
Combined dry heat/low air pressure IEC 60068-2-41 JIS C 0031 (C 60068-2-41)
3) Waterproof Tests:
Degrees of protection provided by enclosures (IP Code) IEC 60529, JIS C 0920
4) Package Drop Tests:
Packaging - Complete, filled transport packages
- Vertical impact test by dropping
ISO 2248 , JIS Z 0202
5) Emission Tests:
Tests Standards Specifications
Radiated emissions CISPR 11/22, FCC 15B, VCCI 150 kHz to 2 GH
Conducted emissions - Power lines (AMN) CISPR 11/22, FCC 15B, VCCI 10 kHz to 30 MHz
